3mm MC3 Panel Solar PV Connector for Solar System

FOB Reference Price:Get Latest Price
$0.40 - $0.70 / Meters | 1000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 5000 Meters)

More

Graphic customization (Min. Order: 5000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
JIUKAI/OEM
Model Number:
MC4 solar cable
Type:
ADAPTER
Application:
Solar power system
Gender:
Male&female
Product name:
MC4 Solar pv Connecor
Color:
Black
Rated voltage:
1/1.5kv
Business type:
Factory
Certificate of origin:
Offer freely
Advantage:
Electrical Propertise
Operating temperature:
-40C-+85C
Contact material:
Silver plated cooper
Locking system:
Snap in
Cable cross section on request:
2.5/4.0/6.0mm2
Supply Ability
Supply Ability:
2000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
1. 250meters in a roll
2.2 rolls in a carton
3.Carton dimension:42cm*42cm*21cm
4.Net weight:35kg 5.Gross weight:36kg
5.As your request
Port
shanghai
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 5 To be negotiated
Product Description

3mm MC3 Panel Solar PV Connector for Solar System


SPECIFICATIONS FOR MC3 PANNEL SOLAR CONNECTOR
Item
MC4 Y-branch  connector
Safety class
II
Rated current
40A
Flame class
UL94-HB / UL94-V0
Rate voltage:
DC1000V/1500V(IEC)
DC600V(UL)
Operating temperature
-40C-+90(IEC)
-40C-+40(UL)
Contact system
MC Multilam
Cable Size
4mm2
Degree of protection, mated
IP65
Degree of protection, mated
IP2X
Contact material
cooper tin plated
Color
Black
Insulation material
TPE / PPO
Application
Solar power system
Locking system plug connectors
Snap-in (nur/only MC4)
Suitable Class
OD4.5-8.5(2.5-6.0mm²)
Type of termination crimpen
crimping
Cable size
2.5mm2,4mm2,6mm2
Contact system
MC Muktilam
Contact resistance of plug connector
5mΩ

The product's detailed description please rsfer to the specification for approval.

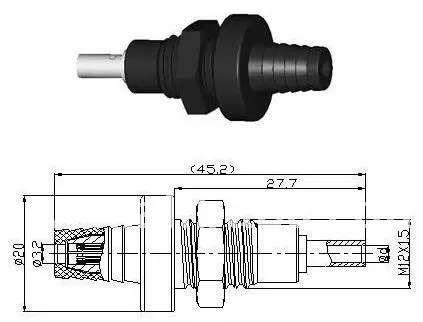

Detailed Images

Main Features

1.Good cold flexibility.

2.Two years warranty.

3.UV,ozone and hydrolysis resistant.

4.Very long service life > 25years at 90 ℃.

5.High temperature resistant, the materials do not metl or flow.

Certifications

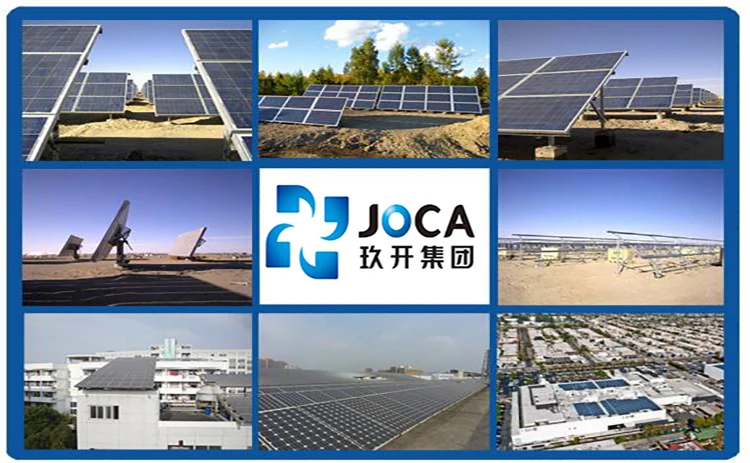

Application
Packing & Delivery
Packaging &Delivery
Port
Shanghai port , Ningbo port ,Shenzhen port ,Guangzhou port ,Qingdao port



Packaging Details

1.200pairs in a carton
2.carton dimension:38cm*29cm*47cm
3.Net weight:22.8kg
4.Gross weight:25kg(or as your requirement)

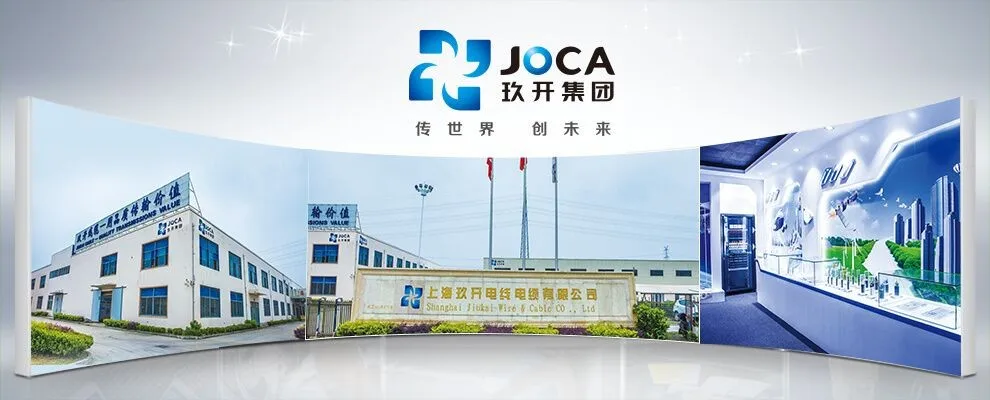

About JOCA


Shanghai Jiukai Wire & Cable Co.,Ltd is a professional Manufacturer in producing Wires & Cables since 2005.

JOCA Holding Group consist of Jiukai Cable, Wuxi Qunxin Cable & Jiukai Communication 3 Companys.
Anual Turnover 3 Billions/ Year.
