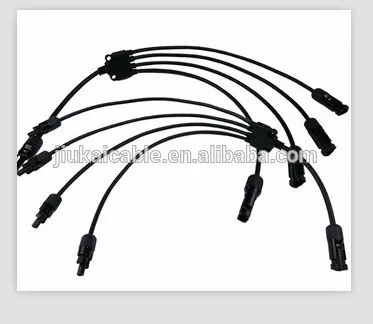

Mc4 4 To 1 Solar Panel Branch connector

FOB Reference Price:Get Latest Price
  • 500 - 999 Sets
    $0.60
  • >=1000 Sets
    $0.55
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Jiukai
Model Number:
MC4 connector
Type:
MC4 Solar connector
Application:
solar panel connection
Gender:
male female
Product name:
MC4 connector
Rated Voltage:
1000V/1500V
Rated Current:
22A(2.5mm2)/30A(4/6mm2)
Color:
Black
Contact material:
Sliver plated copper
Locking system:
Snap in
Suitable cable croee setions:
2.5/4.0/6.0mm2
Delivery:
7~10days as usual or according to the order quality
Certificate:
TUV CE
Keywords:
Mc4 4 To 1
Supply Ability
Supply Ability:
500000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard export carton packing: MC4 connector 1000pair/carton
Port
Shanghai China
Product Details

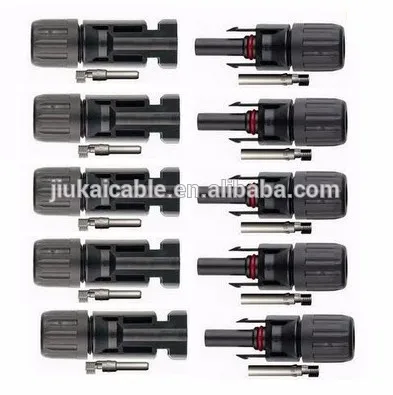

Assembly MC4 Connector Material Properties /Standards

1.Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-modules.

2.Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for many years.

3.Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.

Product Introduction

Jiukai Cable Advantages--MC4 Solar Cable Connectors Assembly

• Waterproof, Dust resistance
•High mechanical endurance
•High current and voltage carrying: 30A,1500DC
•Low transition resistance
•Excellent plastic material
•Approved by TUV

Product Parameters
No.
Specification
Brand
1
Rated Current
22A(2.5/4mm2),30A(4/6mm2)
Jiukai Cable
2
Withstanding Voltage
1000/1500V
Jiukai Cable
3
Temperature Range
-40 oC~+90oC
Jiukai Cable
4
Protection Degree
IP2X /IP67
Jiukai Cable
5
Wire Size Range
2.5/4/6mm2(14AWG,12AWG,10AWG)
Jiukai Cable
6
Insulation Material
PPO/PA/ PC/TPE
Jiukai Cable
7
Contact Material
Silver plated copper
Jiukai Cable

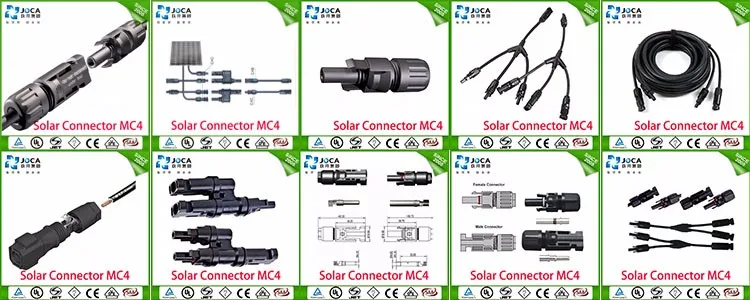

Product Details Show

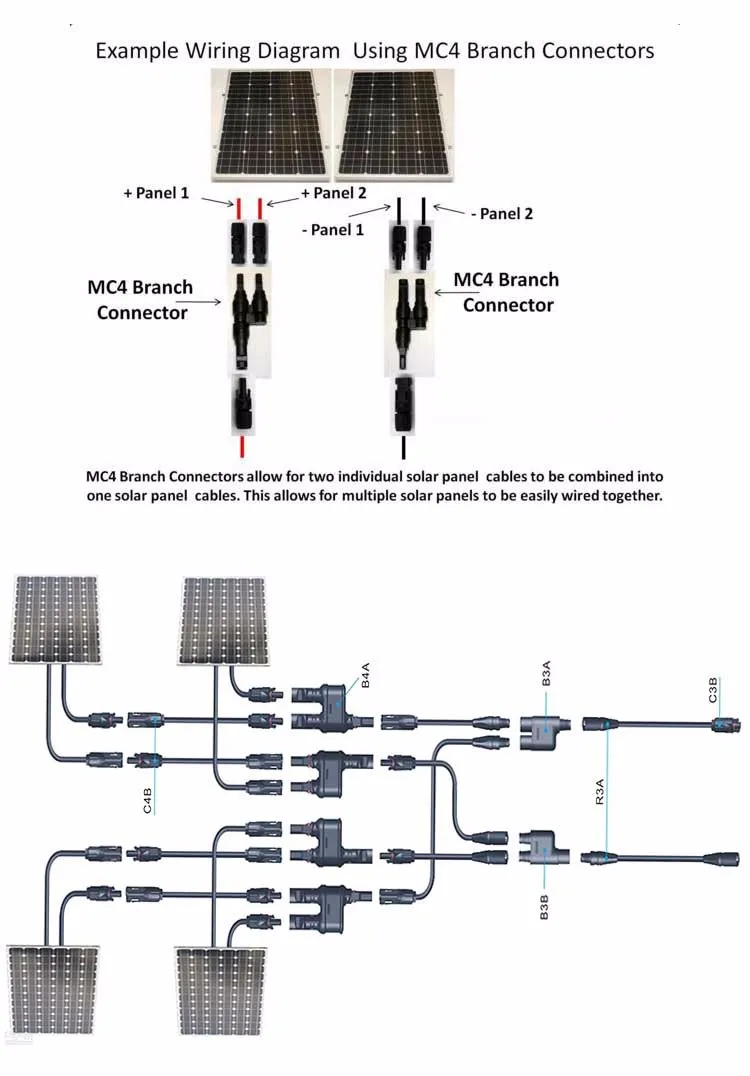

Applications of MC4

MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The MC in MC4 stands for the manufacturer Multi-Contact (currently Stäubli Electrical Connectors) and the 4 for the 4mm diameter contact pin. MC4s allow strings of panels to be easily constructed by pushing the connectors from adjacent panels together by hand, but require a tool to disconnect them to ensure they do not accidentally disconnect when the cables are pulled.

Why Choose Us

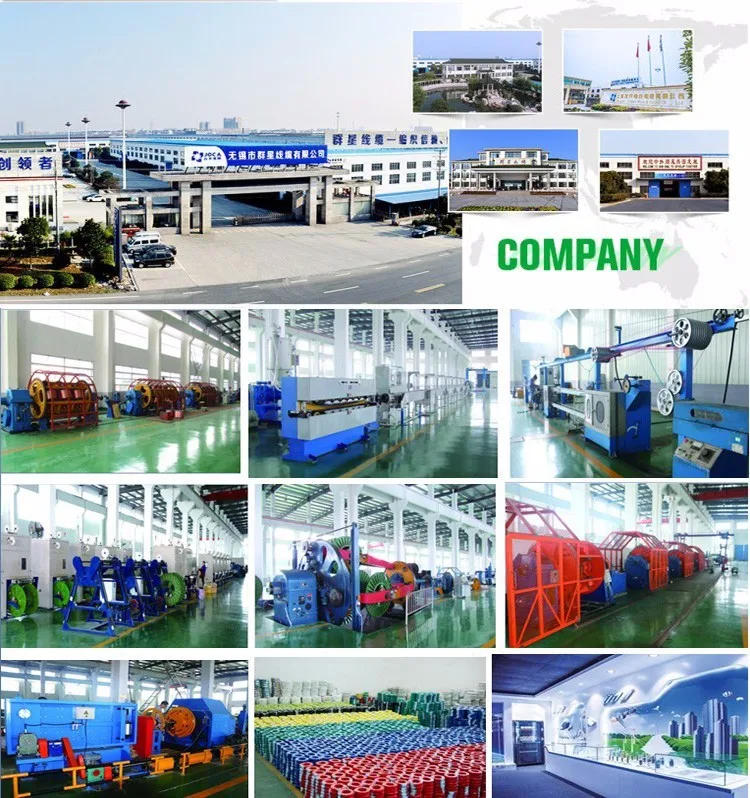

About us

1, JOCA Holding Group consist of Jiukai Cable, Wuxi Qunxin Cable & Jiukai Communication 3 Companys Since 2005.

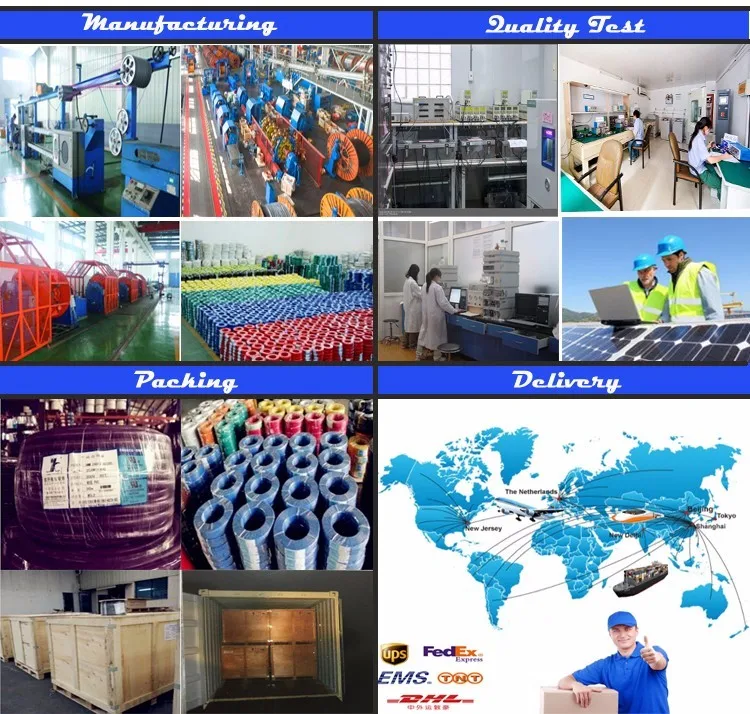

Equipment & technology

2, Full set of certificates of national or international professional testing organizations, such as CCC, UL, TUV, ISO9001:2000, ROHS, CE.

Service

3, Short Delivery Time less than 10days with 25 YEARS Warranty.

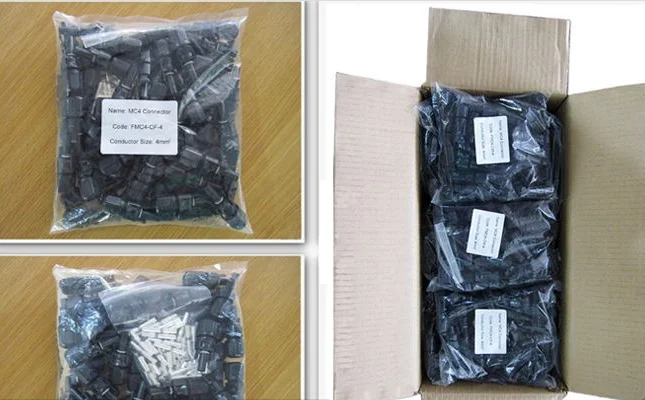

Product Packing

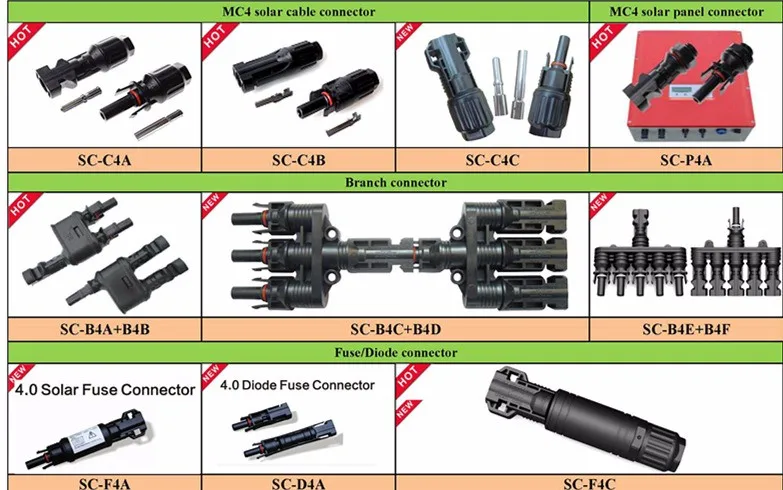

Main Products
