Waterproof TUV Sdi Dc Solar Cable According To IEC 60228

FOB Reference Price:Get Latest Price
$0.03 - $0.07 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Model Number:
Solar PV Cable
Insulation Material:
Low Voltage
Conductor Material:
Copper, Tinned Copper
Business Type:
sy control cable screened bs 6500/din vde 0245/0281
Red, Black
Certificate of Origin:
Offer freely
TUV /UL/ PSE/ EN50618
Wooden drum or rolls
Supply Ability
Supply Ability:
2000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
1) Packing Lengths:300m/roll. or by drums.
2) Other packing available according to clients Request
Waterproof TUV Sdi Dc Solar Cable According To IEC 60228

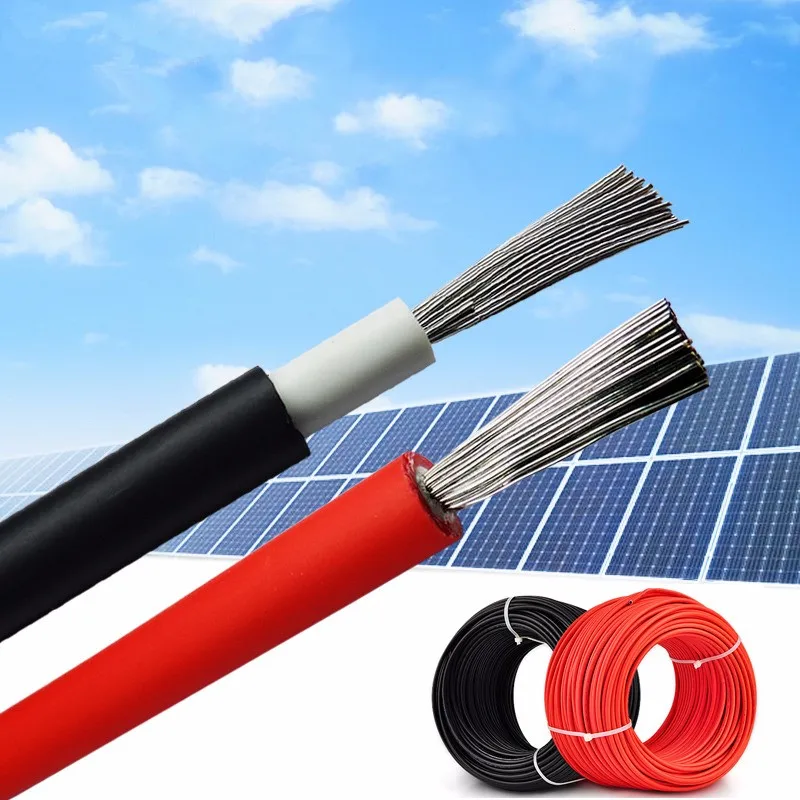

Features of Jiukai Solar Cable:

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.

2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.

3)They operate at DC voltage and provide long life in exposed conditions.

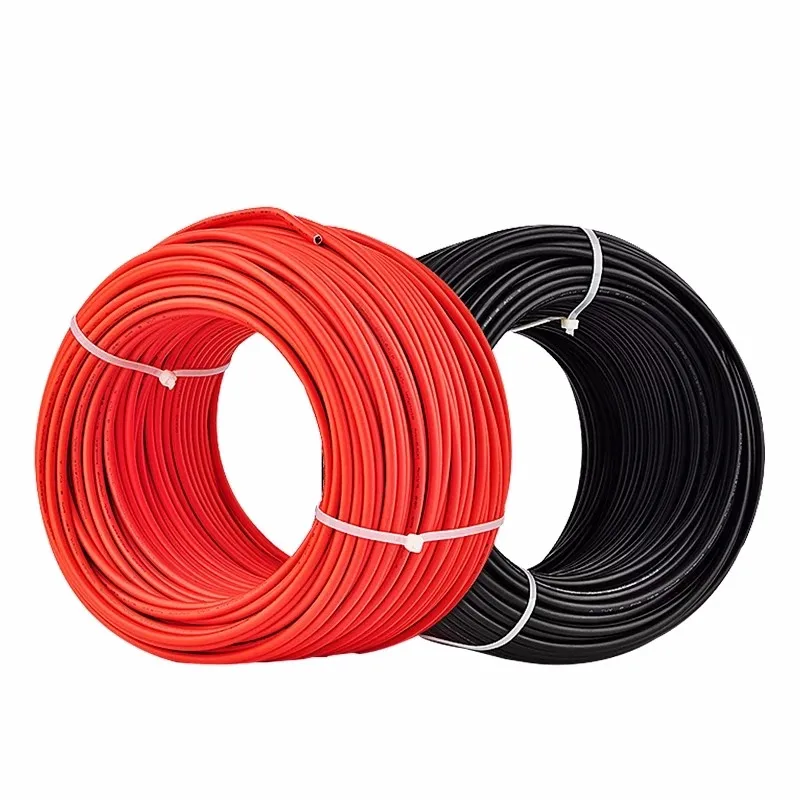

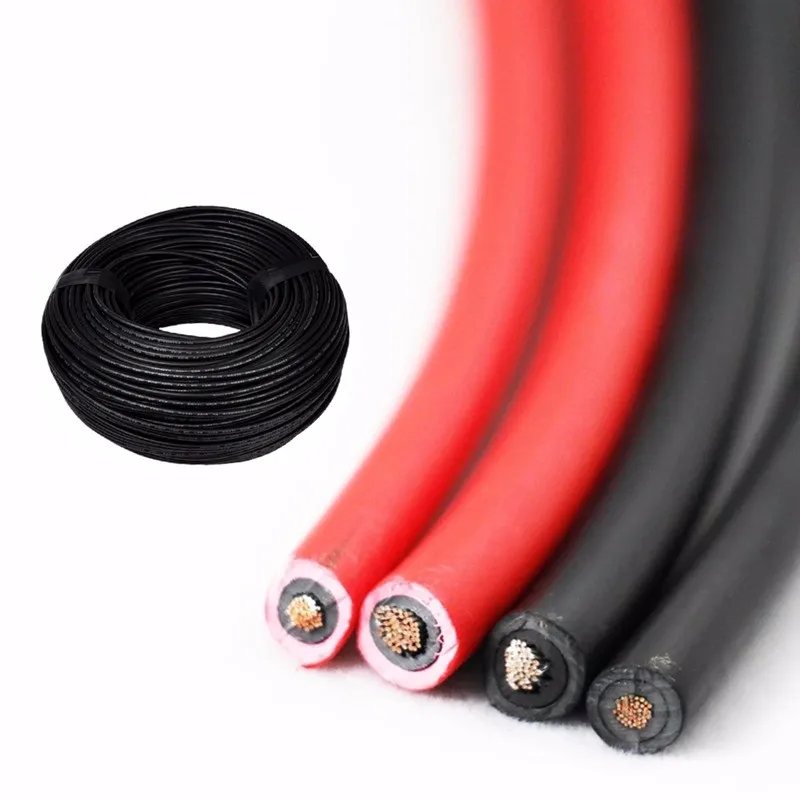

Color: Red/ Black

Packing in rolls


Company Information

About Jiukai Solar Cable:

1) History > Shanghai Jiukai Wire & Cable Co.,Ltd is a professional Manufacturer in producing Wires & Cables since 2005.

2) Company Strength > JOCA Holding Group consist of Jiukai Cable, Wuxi Qunxin Cable & Jiukai Communication 3 Companys.
Anual Turnover 3 Billions/ Year.

JOCA Cable Group (3 Factories)

3) Technical Strength > Full set of certificates of national or international professional testing organizations, such as CCC, UL, TUV, ISO9001:2000, ROHS, CE.

25 Years Warranty.

4)Short Delivery Time > less than 15days and Mature Solar cable Production.

Related Hot items in our Company:

MC4 connector

Cable Assembly

Green/Yellow Earth Wie

Product Description

Product Description

1) Nominal voltage:U0/U=600/1000V AC,1000/1800V DC
2) Test voltage:6500V,50HZ,5min
3) Max. conductor temperature:-40℃ up to +125℃
4) Ambient temperature:-40℃up to +90℃
5) Max. Short circuit temperature:280℃
6) Bending radius: fixed installation>4×Φ Occasionally moved>5×Φ

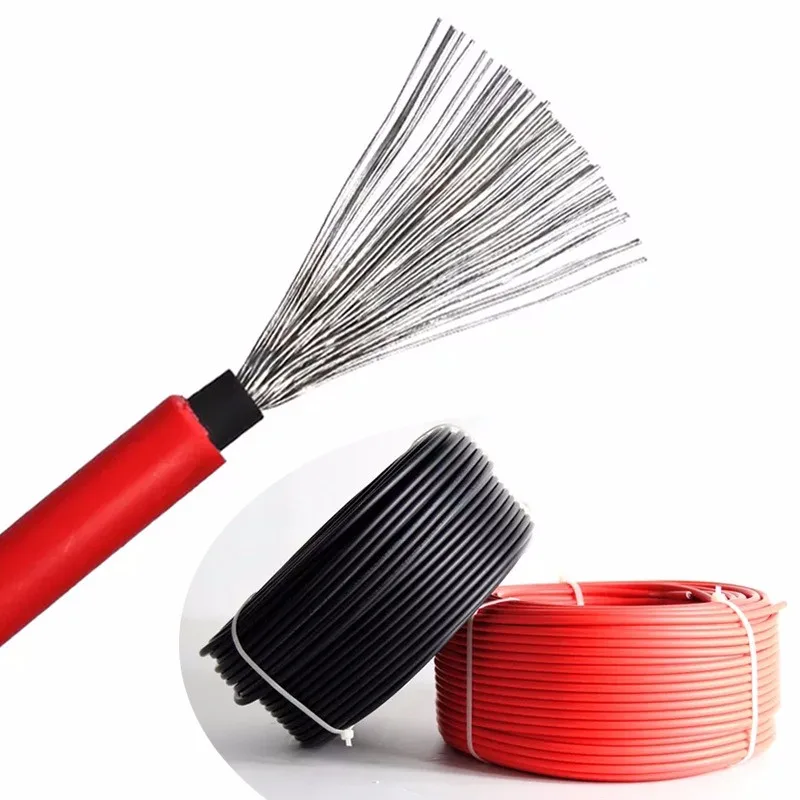

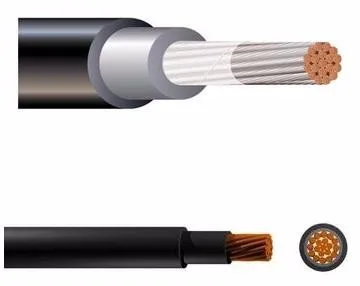

Product Structure

1. Conductor: Tinned copper.

2. Insulation: XLPE/XLPO

3. Sheath: XLPE/XLPO

4. SQMM: 1.5mm2/ 2.5mm2/ 4mm2/ 6mm2/ 10mm2/ 16mm2/ 25mm2/ 35mm2/ 70mm2

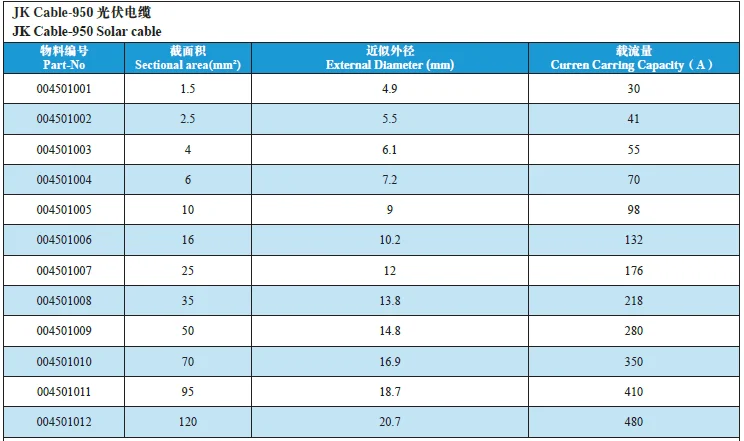

Technical parameters

Nominal voltage:U0/U=600/1000V AC,1000/1800V DC
Passed TUV/ UL/ EN/ PSE Certificates

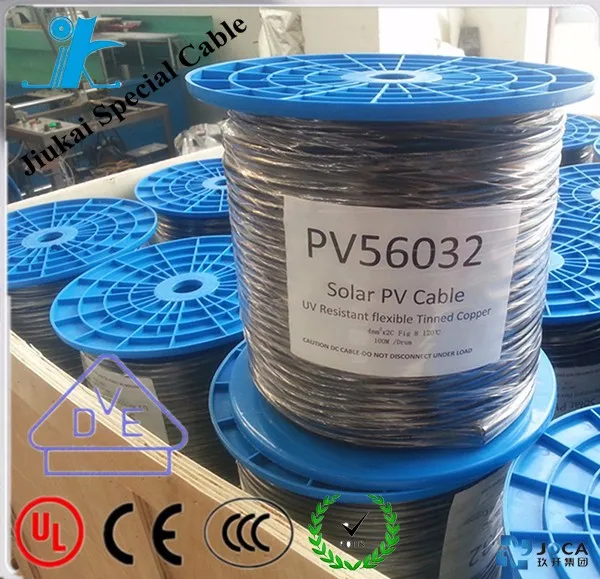

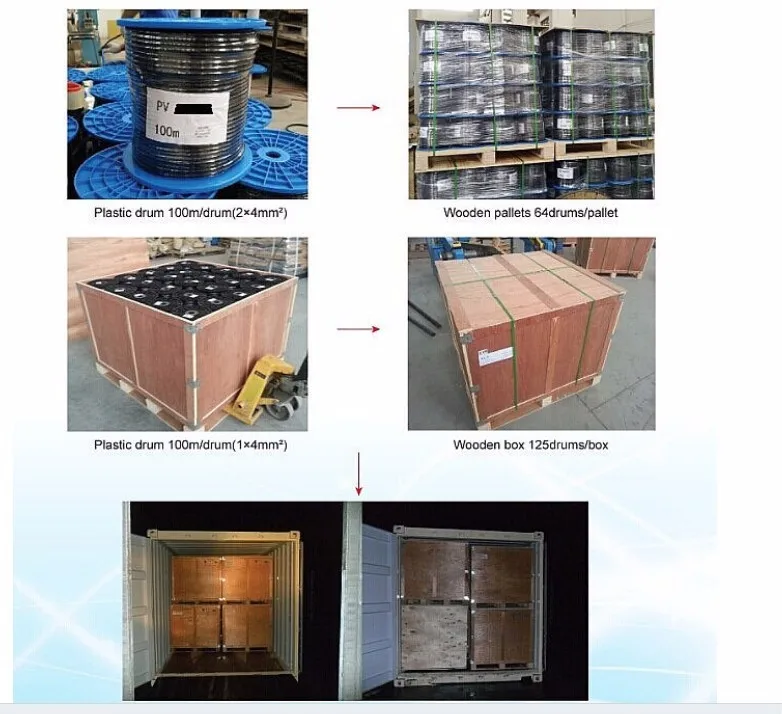

Packing Details

100meters or 200meters per  roll.

100m/Plastic drum.

Wooden case outer packages. As customer's requirements.

Our Team

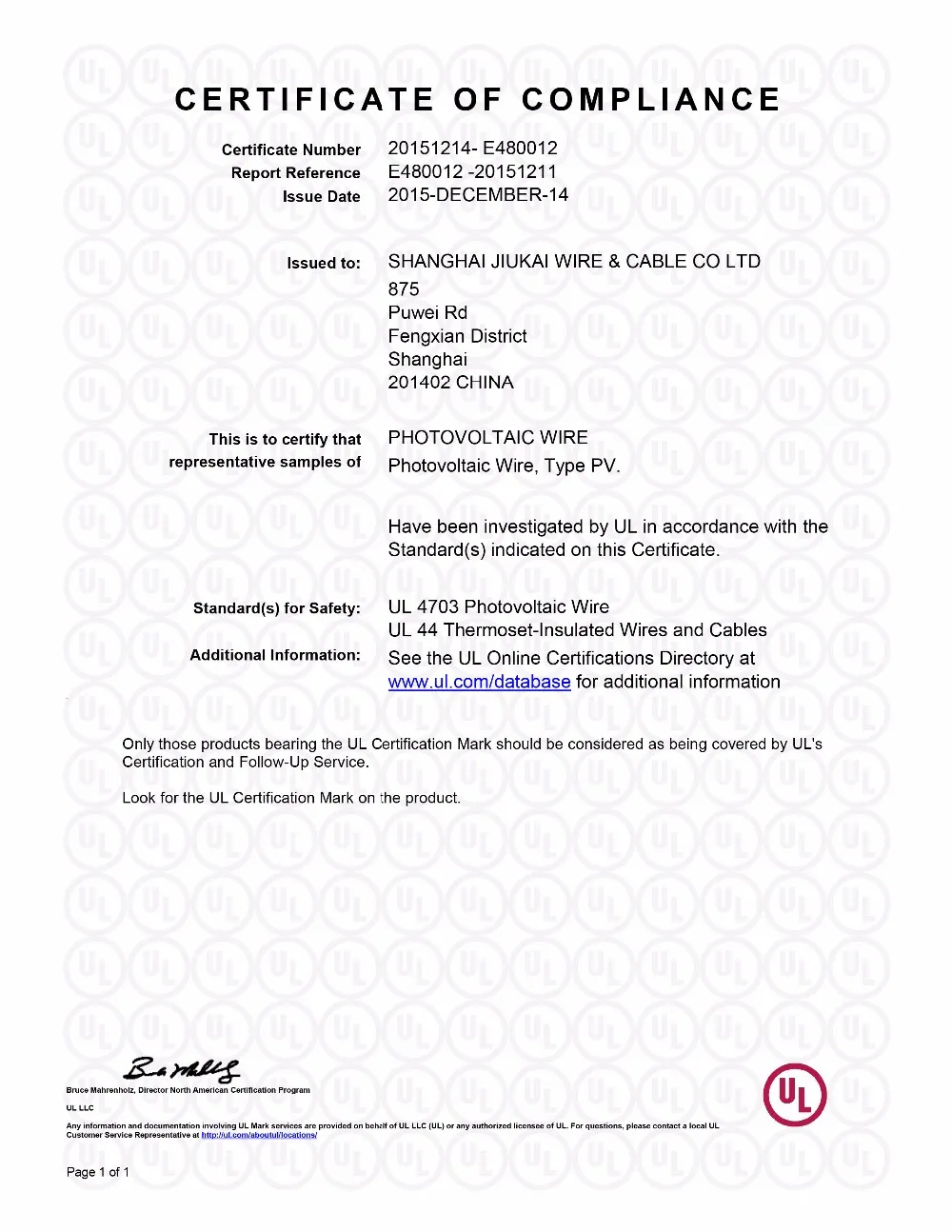

UL Certificate

ISO 9001 Certificate


TUV certificate

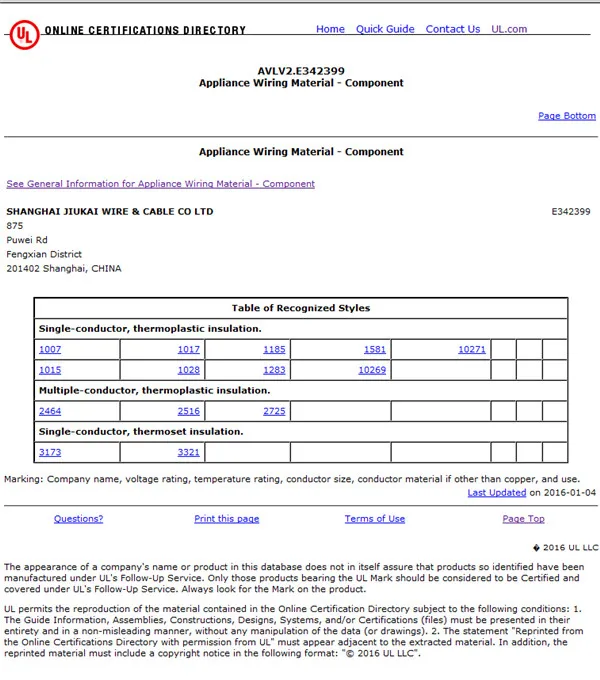

UL certificate

Business License


Q1. Are you a factory or trading company?

A: We are a 13 years factory with more than 50 engineers.

Q2. What about the lead time?

A:Sample needs 1 days, mass production time needs 3-7 Days for order quantity more than 3KM.

Q3. Do you have any MOQ limit for led light order?

A: Better than 3KM.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Kindly let us know your requirements or application firstly then we can confirm orders by emails.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How does your factory do regarding quality control?

A: "Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gained VDE, CE, UL, RoHS, CCC,ISO,KEMA,TUV authentication.
