TUV / UL approved PV cables with connector assemblies MC4 series

FOB Reference Price:Get Latest Price
$0.25 - $0.99 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Jiukai
Model Number:
dc cable
Insulation Material:
XLPE
Type:
Medium Voltage
Application:
Power Station
Conductor Material:
Copper
Jacket:
XLPE
Name:
mc3 mc4 solar pv connector cable
Color:
Black/Red/Blue/Yellow/Green
Rated voltage:
AC 600/1000V DC 1000/1800V
Test Voltage:
6500V
Temperature Range:
-45℃ to 125℃
Environment Temperature:
-40℃ to 90℃(25 years TUV)
Certificate:
TUV, UL, PSE, CE etc.
Conductor:
Bare copper or tinned copper
Insulation:
XLPE
Sheath:
XLPE
Supply Ability
Supply Ability:
21000 Meter/Meters per Week

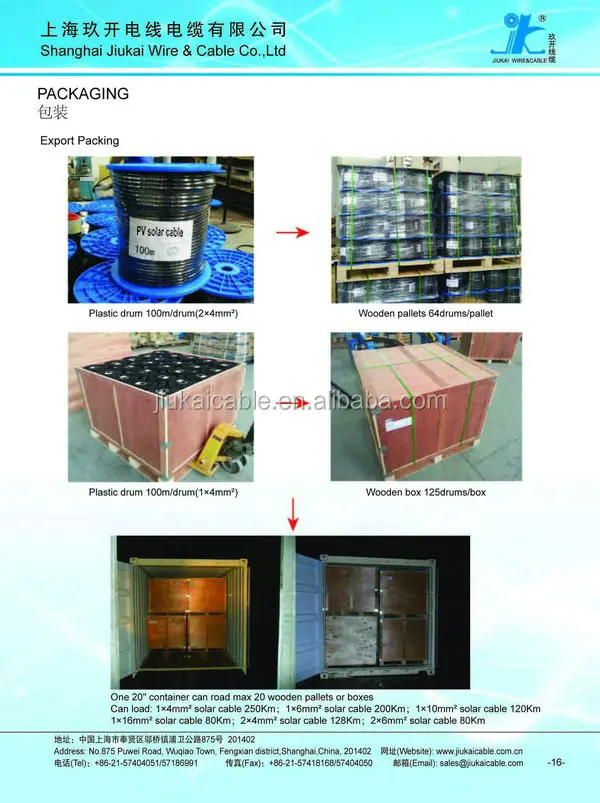

Packaging & Delivery
Packaging Details
TUV / UL approved PV cables with connector assemblies MC4 series
1: Wooden Drum: 100M/Roll,500M/Roll, 1000M/Roll.
2. According to customer requirement.
Port
shanghai china
Lead Time :
Shipped in 7 days after payment
Product Description

TUV / UL approved PV cables with connector assemblies MC4 series

 Especially for the connection between Solar power generation device connector and connection of inverter, under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment.
 High heat-resistant flame retardant, flame retardant from ectinguish comply with IEC60332-1-2+EN60332-1-2.
 Halogen-free,Not contain hydrochloric acid comply with EN50627-2-1
Not contain fluorine comply with EN60684-2
 Climate resistance

Single Core Solar Cable

Construction
External Diameter
Resistance Max
Current Carrying Capacity
n×mm2
mm
Ω/km
(A)
1×1.5
4.9
13.30
30
1×2.5
5.5
7.98
41
1×4.0
6.1
4.75
55
1×6.0
7.9
3.39
70
1×10.0
9.0
1.95
98
1×16.0
10.2
1.24
132
1×25.0
12.0
0.80
176
1×35.0
13.8
0.56
218
1×50.0
14.8
0.39
280
1×70.0
16.9
0.28
350
1×95.0
18.7
0.21
410
1×120.0
20.7
0.16
480

Two Core Solar Cable

Construction
Insulation
Thickness
Sheath
Thickness
External
Diameter
Resistance
Max
Current Carrying Capacity
n×mm2
mm
mm
mm
Ω/km
(A)
2×1.5
0.7
0.8
4.9×10
13.30
30
2×2.5
0.7
0.8
5.5×11.5
7.98
41
2×4.0
0.7
0.8
6.1×12.5
4.75
55
2×6.0
0.8
0.9
7.2×14.5
3.39
70
2×10.0
0.9
1.1
9.0×18.5
1.95
98
2×16.0
1.1
1.1
10.2×20.5
1.24
132

TUV Approved EN50618 Standard Solar Cable

Construction
Conductor Construction
External
Diameter
Resistance
Max (20℃)
Current Carrying Capacity
n×mm2
n/mm
mm
Ω/km
A
1×2.5
50/0.25
5.90
8.21
39
1×4
56/0.30
6.60
5.09
52
1×6
84/0.30
7.40
3.39
67
1×10
80/0.40
8.80
1.95
93
Packaging & Shipping
HS CODE
8544492100
Packaging Details
1: Wooden Drum: 100M/Roll,500M/Roll, 1000M/Roll.
2. According to customer requirement.
Delivery    Detai
1: 5-10days if the goods are in stock
2: 15-20 days if the goods are not in stock, it is according to quantity.
3: This is a matter of negotiation.

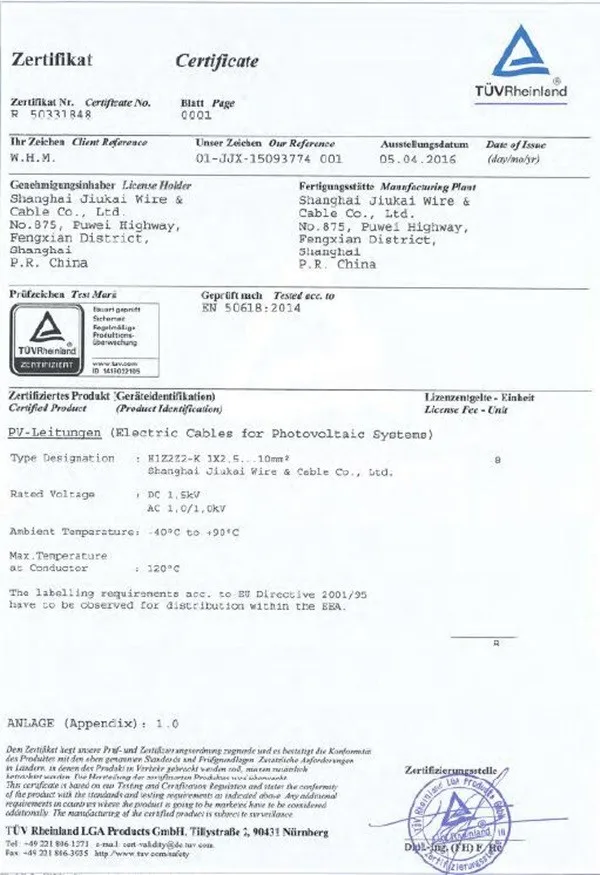

Certification

EN50618

No: R50331848

TUV

No: R50203088

UL

No: E480012

Company Information

Shanghai Jiukai Wire & Cable Co., Ltd

Our company is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000.

Why Choose Us

We are a professional wire and cable manufacturer

1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the  products;
3.We guarantee 100% good quality when the products are   sent out of factory;
4.We ship the goods by the fastest way of EMS,UPS,DHL     and TNT,reaching most countries within 7 days;

5.Jiukai is ship to world wide;
6.Once we shipped the products,our after-sale service will  send you the tracking number;
7.If your item is not as described or faulty when you receive it, we will send replace it for you with no additional charge;
8.If the item is found non-defective,the item will be sent       back to the buyer at buyer's expense.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.


Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Contact Us

If you have another question for TUV / UL approved PV cables with connector assemblies MC4 series, pls feel free to contact us as below
