Solar PV Cable Connector Solar MC4 Connector for 10.0mm2 Wire

FOB Reference Price:Get Latest Price
  • 100 - 499 Pairs
    $0.80
  • 500 - 999 Pairs
    $0.60
  • >=1000 Pairs
    $0.35
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
JIUKAI
Model Number:
mc4 connector
Type:
MC3/MC4 Solar PV Connector
Application:
Solar System
Rated Voltage:
1000V
Rated Current:
22A(2.5mm2)/30A(4/6mm2)
Dia. of pin or socket:
4mm
Insulation material:
PC/PA/PPO/TPE
Contact material:
Sliver plated copper
Locking system:
Snap in
Suitable cable cross section:
2.5/4.0/6.0mm2
Color:
Black
Name:
Solar PV Cable Connector Solar MC4 Connector for 10.0mm2 Wire
Supply Ability
Supply Ability:
100000 Pair/Pairs per Week
Packaging & Delivery
Packaging Details
Solar PV Cable Connector Solar MC4 Connector for 10.0mm2 Wire
1.200pairs in a carton
2.carton dimension:38cm*29cm*47cm
3.Net weight:22.8kg
4.Gross weight:25kg(or as your requirement)
Port
shanghai china
Lead Time :
Shipped in 7 days after payment
Product Description

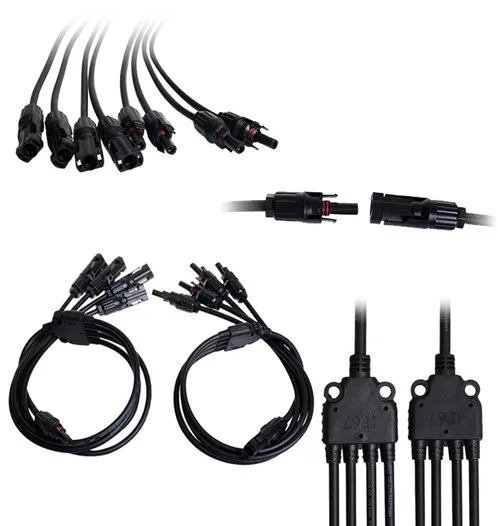

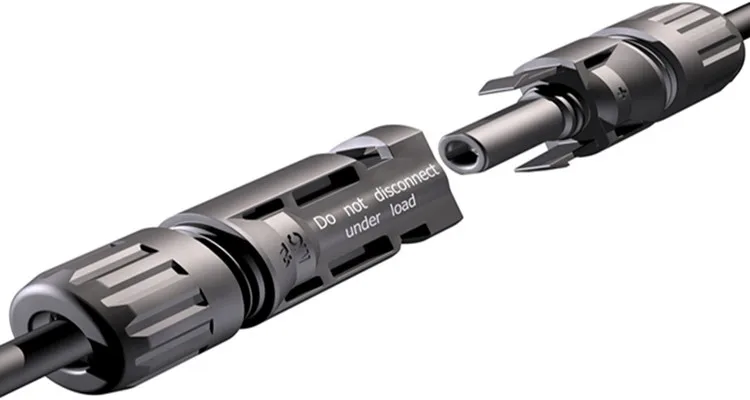

Solar PV Cable Connector Solar MC4 Connector for 10.0mm2 Wire


Good cold flexibility.
Two years warranty.
UV,ozone and hydrolysis resistant.
Compatible to all popular connector.
Very long service life > 25years at 90 ℃.
Electron-beam cross-linked compounds.
High temperature resistant, the materials do not metl or flow.

Rated current
30A (2.5-6mm²)
Protection degree
IP67/IP2X
Retaed voltage
1000V
Flame class
UL94-V0
Test voltage
6000V(50Hz,1min)
Safety class:
II
Overvoltage category
CATIII
Suitable class
OD4.5-8.5(2.5-6mm2)
Contact resistance of plug connector
1.0mΩ
Insertion force/withdrawal force:
≤50N/≥50N
Contact material
Copper, Silver Plated
Connecting System
crimp connection
Insulation material
PPO
Temperature range
-40OC~+125OC

Male


Order No
Part P/N
Cable Spec
Connector
Terminal
Conductor size(mm²)
Cable OD(mm)
CN40-CMMM-14


CN40-CMMM-H
CN40-CM-T14
AWG 14(2.5mm²)


ø4.5~8.5
CN40-CMMM-12
CN40-CM-T12
AWG 12(4.0mm²)
CN40-CMMM-10
CN40-CM-T10
AWG 10(6.0mm²)

Female


Order No
Order No
Cable Spec
Order No
Terminal
Conductor size(mm²)
Cable OD(mm)
CN40-CFPM-14


CN40-CFPM-H
CN40-CFPM-14
AWG 14(2.5mm²)
ø4.5~8.5
CN40-CFPM-12
CN40-CFPM-12
AWG 12(2.5mm²)
CN40-CFPM-10
CN40-CFPM-10
AWG 10(2.5mm²)

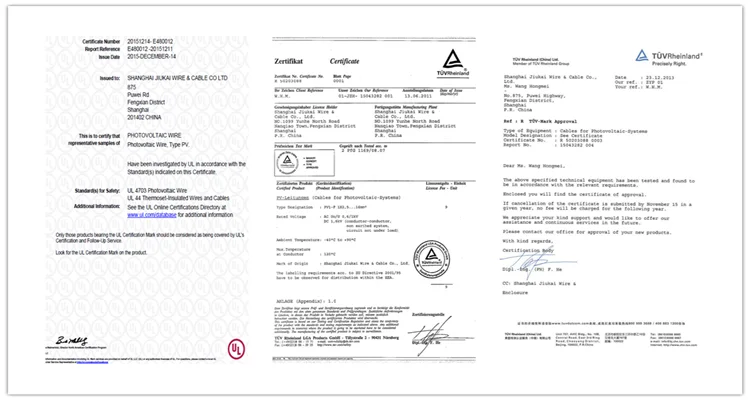

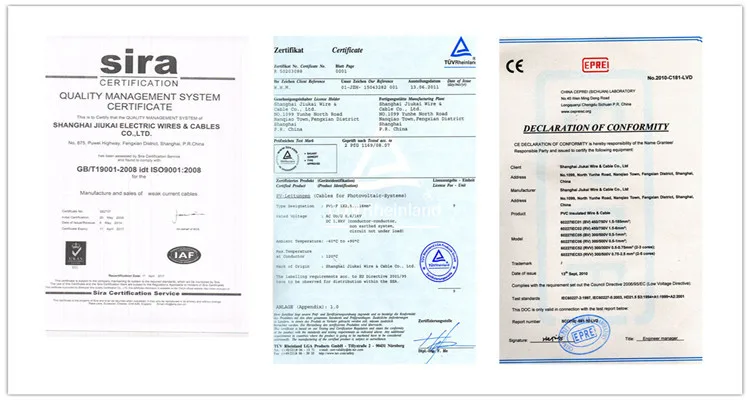

Certification

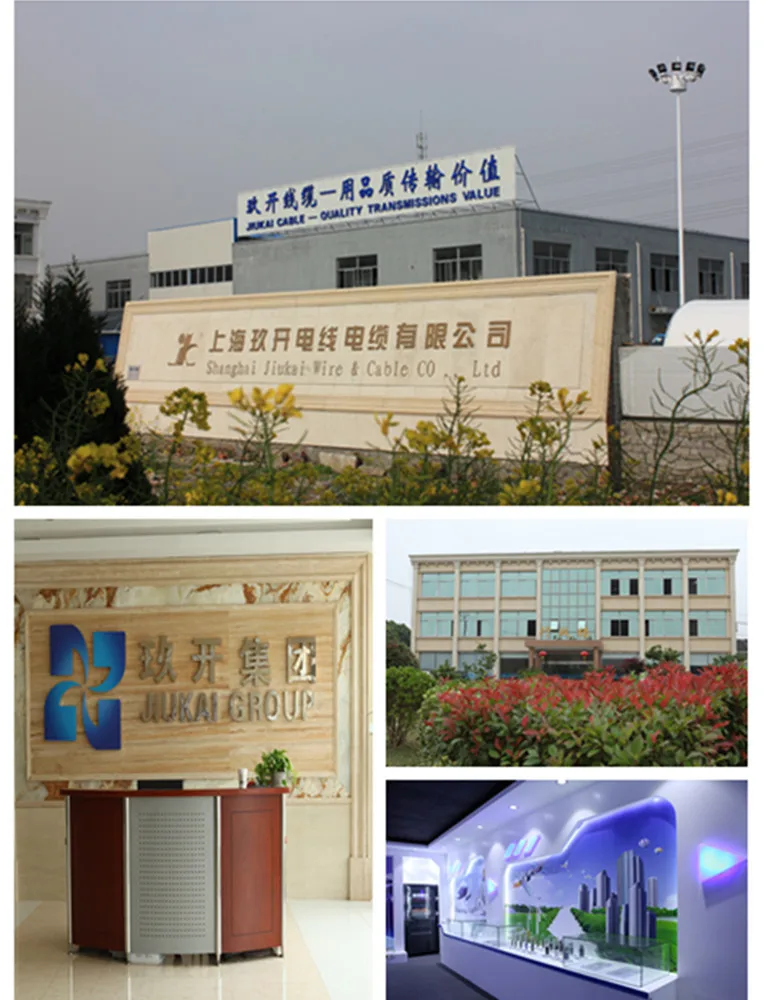

Company Information

Shanghai Jiukai Wire & Cable Co., Ltd

Our company is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000.

Why Choose Us

We are a professional wire and cable manufacturer

1.Jiukai sends all the items with Outgoing Quality  Inspection Report;
2.The copy of TUV certification will be sent along with the  products;
3.We guarantee 100% good quality when the products are   sent out of factory;
4.We ship the goods by the fastest way of EMS,UPS,DHL     and TNT,reaching most countries within 7 days;

5.Jiukai is ship to world wide;
6.Once we shipped the products,our after-sale service will  send you the tracking number;
7.If your item is not as described or faulty when you receive it, we will send replace it for you with no additional charge;
8.If the item is found non-defective,the item will be sent       back to the buyer at buyer's expense.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.


Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Contact Us

If you have another question about Solar PV Cable Connector Solar MC4 Connector for 10.0mm2 Wire, pls feel free to contact us as below
